*A by-pass valve should always be mounted in parallel to the exchanger
in order to avoid excessive pressure peak.

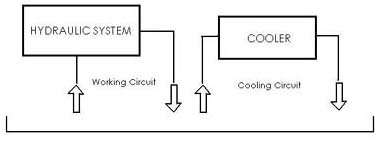

*It's strongly recommended to use independent oil cooling circuit for fan type coolers below.
PLATE-FIN HEAT EXCHANGER
*A by-pass valve should always be mounted in parallel to the exchanger
in order to avoid excessive pressure peak.
*It's strongly recommended to use independent oil cooling circuit for fan type coolers below.
 |
 |
| AH0608T-CA | AH0608LT-CA |
 |
 |
 |
 |
| AH1012-CA | AH1417-A | AH1418-CA | AH1470-A |
 |
 |
 |
 |
| AH1470-CA | AH1490-CA |
AH1680-CA | AH1890-CA |
 |
 |
 |
| AW0607-CA | AW0608-CA | AW0608L-CA |
 |
 |
 |
 |
| AL-CA | AL-A | AL | AL-4A |
Spec.
Model “AH” |
Thread PT” |
Working Pressure MPa |
Capacity Kcal / h |
Hydraulic HP |
Dimension LxHxW mm |
Weight kg |
AH0608T-CA |
3/4” |
2 |
1500 |
2~3 |
305x200x115 |
4.2 |
AH0608LT-CA |
3/4” |
2 |
3600 |
3~5 |
405x200x115 |
6 |
AH1012-CA |
1” |
2 |
6000 |
5~7.5 |
417x360x200 |
10 |
AH1417-A |
1” |
2 |
10000 |
7.5~10 |
570x411x200 |
11 |
AH1418-CA |
1” |
2 |
12000 |
7.5~10 |
570x420x200 |
30 |
AH1470-A |
1-1/4” |
2 |
14000 |
10~15 |
570x407x225 |
13 |
AH1470-CA |
1-1/4” |
2 |
18000 |
15~20 |
520x475x320 |
25 |
AH1490-CA |
1-1/2” |
2 |
24000 |
20~25 |
520x640x300 |
30 |
AH1680-CA |
1-1/2” |
2 |
32000 |
25~40 |
520x640x320 |
35 |
AH1890-CA |
1-1/2” |
2 |
42000 |
30~50 |
650x800x380 |
52 |
Model “AW” |
Thread PT” |
Flow Rate l/min. |
Working Pressure MPa |
Capacity Kcal / h |
Dimension LxHxW mm |
Weight kg |
AW0607-CA |
1/2” |
20 |
1.5 |
700 |
250x200x1108 |
3.3 |
AW0608-CA |
1/2” |
20 |
1.5 |
900 |
310x200x108 |
3.7 |
AW0608L-CA |
1/2” |
20 |
1.5 |
1500 |
410x200x108 |
5.2 |
Model “AL” |
Thread PT” |
Flow Rate l/min. |
Working Pressure MPa |
Capacity Kcal / h |
Dimension LxHxW mm |
Weight kg |
AL404 |
1/2” |
10 |
1 |
No fan |
250x203x67 |
1 |
AL404-A |
1/2” |
10 |
1 |
1100 |
250x203x120 |
2.25 |
AL404-CA |
1/2” |
10 |
1 |
1200 |
250x203x120 |
2.85 |
AL404-4A |
1/2” |
10 |
1 |
800 |
250x203x98 |
1.75 |
AL608 |
3/8” |
10 |
1 |
No fan |
250x203x57 |
0.75 |
AL608-A |
3/8” |
10 |
1 |
800 |
250x203x110 |
2 |
AL608-CA |
3/8” |
10 |
1 |
900 |
250x203x110 |
2.6 |
AL608-4A |
3/8” |
10 |
1 |
600 |
250x203x88 |
1.5 |
